Solder Paste Stencil Manufacturer

Our laser cut solder paste stencil service is suitable for anyone assembling surface-mounted components and needs to screenprint solder paste onto PCBs. This low-cost service offers a fast turnaround and allows you to avoid additional repeated royalty and licence fees by using a non-proprietary Zelflex frame tension system.

We’ll edit your stencil data to incorporate tooling holes, frame mounting holes, frame mounting holes, tool numbers, text, fiducials, steps and repeats and more. Each of your solder stencils is then supplied in storage wallets which are secured by Velcro with hooks for hanging storage.

We manufacture foil type stencils using either 0.125 or 0.150mm thick stainless steel sheets that are specifically rolled for solder paste screens. Frame mounting holes are cut to suit each client’s individual mounting system requirements.

If you are looking for a low-cost foil stencil for a small production run when frame mount holes may not be required, consider our competitively priced one-day delivery express stencil service.

Get a full-service laser stencil quote from our sister company
PCB Train and buy online today.

Get A Quote

Delivery Information

Half-day service

Requires orders and data to be with us before 9.00 am, subject to which we will ship by the close of business the same working day, service available weekdays only.

1 day service

Requires orders and data to be with us before 12.00 am, mid-day, subject to which we will ship by the close of business the next working day, service available week-days only.

2 day service

Requires orders and data to be with us before 12.00 am, mid-day, subject to which we will ship by the close of business the day following the next working day, service available weekdays only.

FAQ's

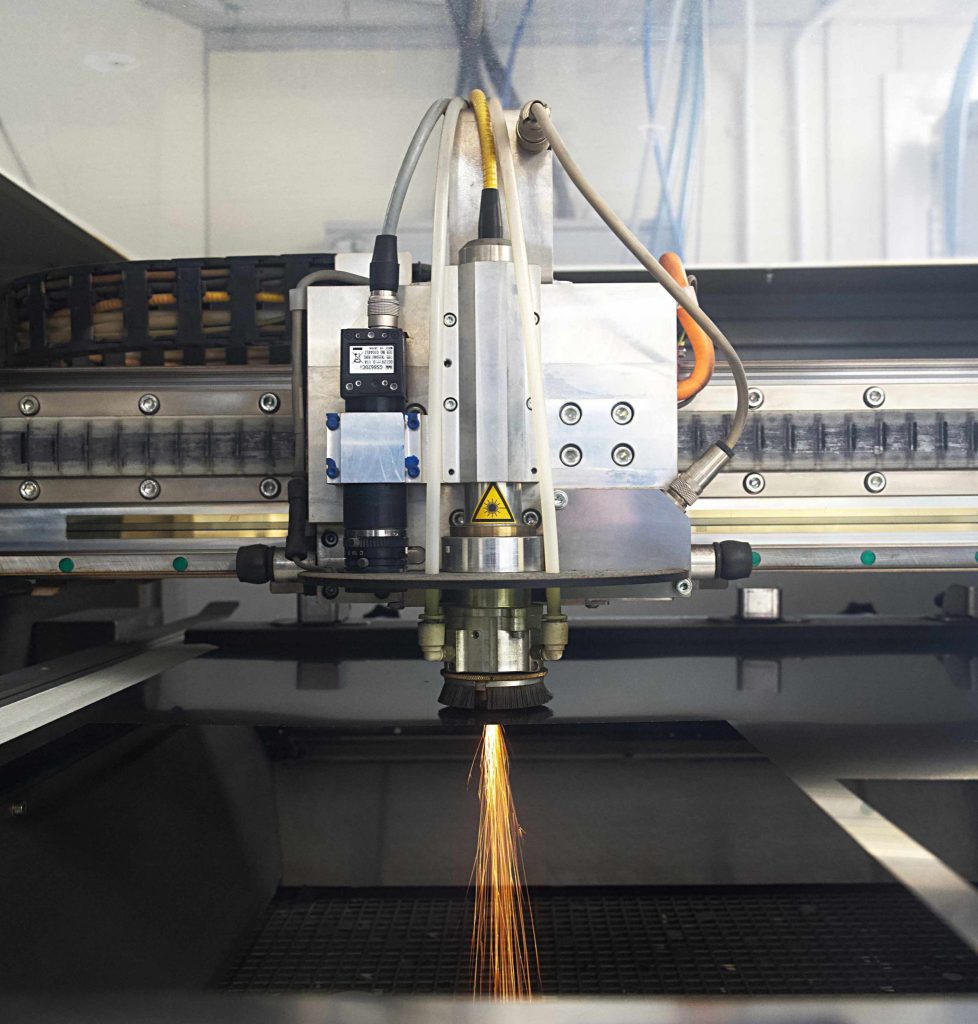

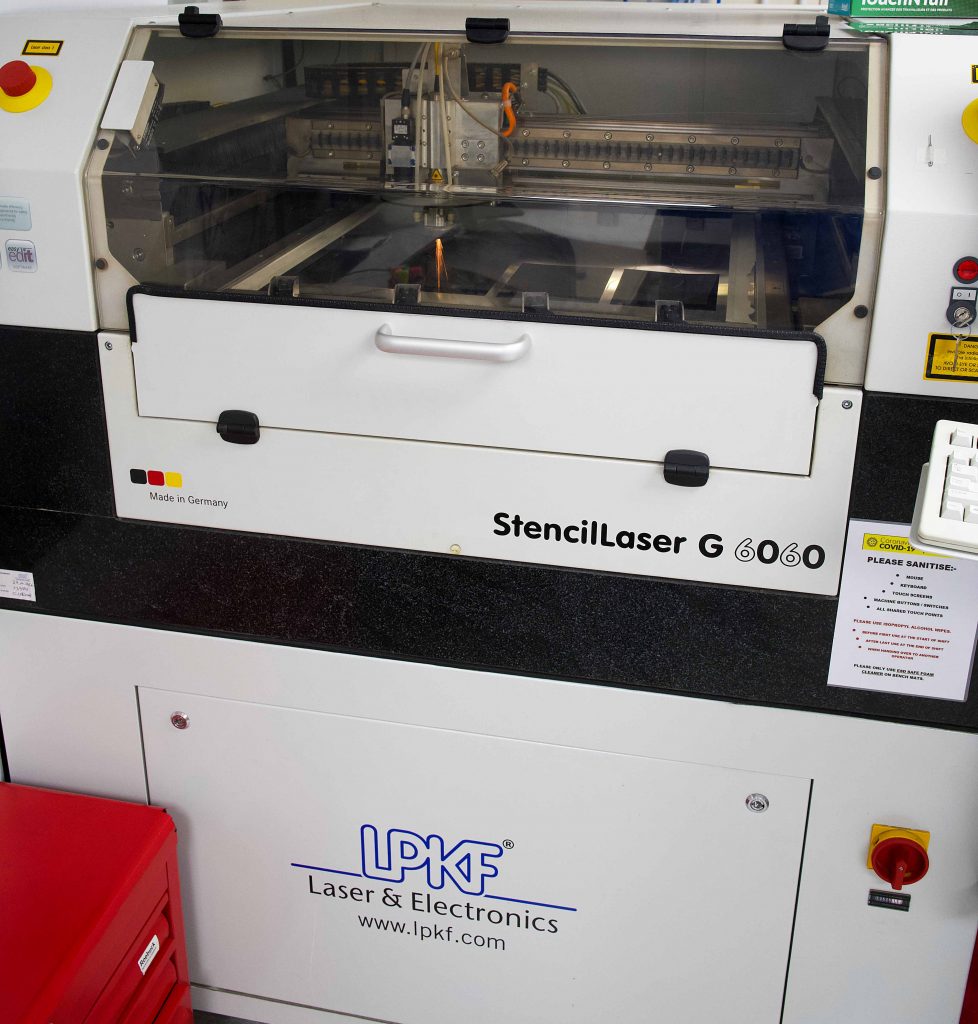

We use precision specialist laser stencil cutting machines from LPKF.

We are unfortunately unable to provide stencils mounted over mesh frames. However, the foil type stencils that we supply can be used with a foil tensioning system in a solder paste printer for use with mesh frames.
